| 产品编号 |
常用扭矩 (N.m) |
最大扭矩 (N.m) |
最高回转数 (min-1) |
惯性 (kg.㎡) |
容许偏心量 (mm) |
容许角偏差 (°) |
容许轴向位差 (mm) |
质量 (g) |
| MHS-27C | 1.8 | 3.6 | 10000 |
3.1 x 10-6 |
1° | ±0.15 | 25.0 |
30.0 |
| MHS-35C | 4.0 | 8.0 | 10000 |
8.0 x 10-6 |
1° | ±0.2 | 48.0 |
54.0 |
| MHS-40C | 7.0 | 14.0 | 10000 |
2.0 x 10-5 |
1° | ±0.25 | 90.0 |
94.0 |
| MHS-45C | 10.0 | 20.0 | 10000 |
2.8 x 10-5 |
1° | ±0.3 | 98.0 |
112.0 |
| MHS-50C | 16.0 | 32.0 | 10000 |
6.6 x 10-5 |
1° | ±0.35 | 150.0 |
189.0 |
| MHS-57C | 26.0 | 52.0 | 10000 |
9.8 x 10-5 |
1° | ±0.4 | 238.0 |
242.0 |
| MHS-68C | 62.0 |
124.0 |
10000 |
24.0 x 10-5 |
1° | ±0.45 | 470.0 |
408.0 |
| MHS-82C | 100.0 |
200.0 |
10000 |
6.8 x 10-4 |
1° | ±0.6 | 1050.0 |
791.0 |
| MHS-95C | 180.0 |
360.0 |
10000 |
10.8 x 10-4 |
1° | ±0.65 | 1230.0 |
1024.0 |
* 最大孔径时惯性矩
** 最大孔径时质量

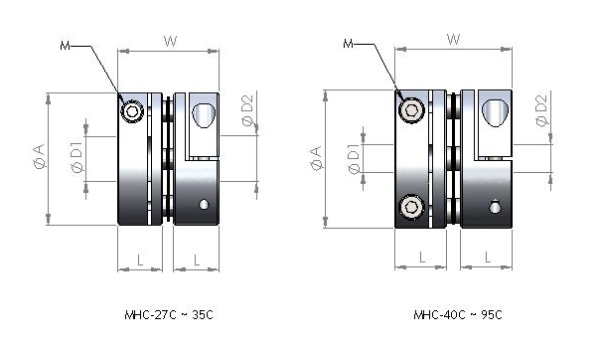

| Unit:mm |
| 产品编号 | A | L | W |
标准孔径 D1 x D2 (公差 H8) Min D1 |
标准孔径 D1 x D2 (公差 H8) Max D2 |
M |
| MHS-27C | 27 | 11 | 24.5 | 5 | 10 |
2-M3 |
| MHS-35C | 35 | 12 | 27 | 6 | 14 |
2-M3 |
| MHS-40C | 40 | 15 | 34 | 8 | 16 |
4-M4 |
| MHS-45C | 45 | 15 | 34 | 10 |
20 |
4-M4 |
| MHS-50C | 50 | 20 | 45 | 12 | 22 |
4-M5 |
| MHS-57C | 57 | 20 | 45 | 12 | 25 |
4-M5 |
| MHS-68C | 68 | 24 | 54 | 14 | 32 |
4-M6 |
| MHS-82C | 82 | 30 | 68 | 19 | 35 |
4-M8 |
| MHS-95C | 95 | 30 | 68 | 22 | 45 |
4-M8 |
