| 产品编号 |
常用扭矩 (N.m) |
最大扭矩 (N.m) |
最高回转数 (min-1) |
惯性 (kg.㎡) |
容许偏心量 (mm) |
容许角偏差 (°) |
容许轴向位差 (mm) |
质量 (g) |
| XHCA-27C | 2.5 | 5.0 | 23000 | 4.5 x 10-6 | 0.2 | 2° | ±0.4 | 39.0 |
| XHCA-35C | 5.0 | 10.0 | 18000 | 1.4 x 10-5 | 0.25 | 2° | ±0.4 | 75.0 |
| XHCA-40C | 9.0 | 18.0 | 16000 | 3.0 x 10-5 | 0.3 | 2° | ±0.6 | 125.0 |
| XHCA-45C | 12.0 | 24.0 | 14000 | 4.8 x 10-5 | 0.3 | 2° | ±0.6 | 155.0 |
| XHCA-50C | 18.0 | 36.0 | 12000 | 9.9 x 10-5 | 0.3 | 2° | ±0.6 | 257.0 |
| XHCA-57C | 26.0 | 52.0 | 11000 | 16.5 x 10-5 | 0.3 | 2° | ±0.8 | 330.0 |
| XHCA-68C | 62.0 | 124.0 | 10000 | 40.0 x 10-5 | 0.3 | 2° | ±0.8 | 554.0 |
* 最大孔径时惯性矩
** 最大孔径时质量

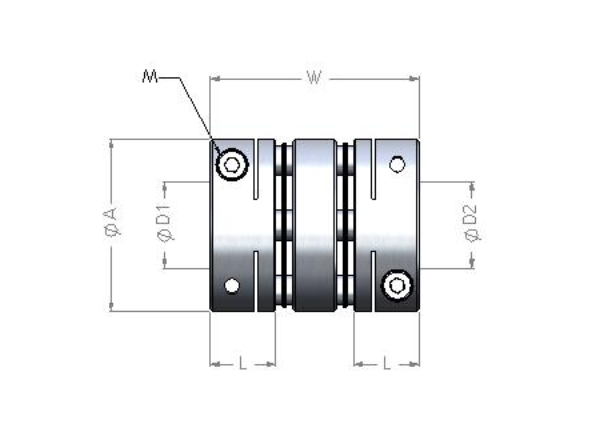

| Unit:mm |
| 产品编号 | A | L | W |
标准孔径 D1 x D2 (公差 H8) Min D1 |
标准孔径 D1 x D2 (公差 H8) Max D2 |
M |
| XHCA-27C | 27 | 11 | 35 | 5 | 14 | 4-M3 |
| XHCA-35C | 35 | 12 | 38 | 6 | 16 | 4-M3 |
| XHCA-40C | 40 | 15 | 48 | 8 | 20 | 4-M4 |
| XHCA-45C | 45 | 15 | 48 | 8 | 22 | 4-M4 |
| XHCA-50C | 50 | 20 | 62 | 10 | 25 | 4-M5 |
| XHCA-57C | 57 | 20 | 62 | 12 | 28 | 4-M5 |
| XHCA-68C | 68 | 24 | 74 | 14 | 35 | 4-M6 |
